Rotary Switches

• Automation Grade
• Manual

• Circuit Type
• 3-position/4-position (customizable)

• Color
• Black/Gray handle with silver/white markings

• Contact Resistance
• 50 m

• Current Rating
• 10A / 16A / 20A / 32A (as per variant)

• Finish Type
• Matte finish

• Insulation Resistance
• 100 M at 500 VDC

• Material
• High-grade engineering plastic and copper contacts

• Max. Current
• 32A

• Max. Voltage
• 660 V AC

• Mechanical Life
• >100,000 operations

• Mounting Type
• Panel/Door Mount

• No Of Poles
• 1 to 4 Poles (as per order)

• Number of Module
• Single/Multiple (as required)

• Operating Temperature
• -25C to +55C

• Product Type
• Cam Operated Rotary Switch

• Protection Level
• IP40/IP54 (on request)

• Rated Voltage
• 415 V AC

• Response Time
• Instantaneous mechanical operation

• Size
• Standard panel cut-out 22.5 mm / 25.4 mm

• Stoke
• Standard rotary stroke 90/60/45 (as per model)

• Temperature Range
• -25C to +55C

• Weight
• Approx. 200 g

• Automation Grade
• Manual

• Circuit Type
• Double Throw

• Color
• White

• Contact Resistance
• 50 m

• Current Rating
• 32A / 63A

• Finish Type
• Glossy

• Insulation Resistance
• >1000 M (at 500V DC)

• Material
• High Grade Polycarbonate & Copper

• Max. Current
• 63A

• Max. Voltage
• 415V AC

• Mechanical Life
• 10,000 operations

• Mounting Type
• Surface/Panel Mount

• No Of Poles
• 2/4 Poles

• Number of Module
• 2M/4M

• Operating Temperature
• -10C to +60C

• Product Type
• Changeover Switch

• Protection Level
• IP20

• Rated Voltage
• 240V/415V AC

• Response Time
• Instantaneous

• Size
• Standard Modular (varies with rating)

• Stoke
• Rotary

• Temperature Range
• -10C to +60C

• Weight
• Approx. 350g

• Automation Grade
• Manual

• Circuit Type
• Three Phase

• Color
• Silver

• Contact Resistance
• 50 m

• Current Rating
• 63A

• Finish Type
• Matte Finish

• Insulation Resistance
• 100 M at 500V DC

• Material
• Stainless Steel (SS 304)

• Max. Current
• 63A

• Max. Voltage
• 415V AC

• Mechanical Life
• >10,000 operations

• Mounting Type
• Wall Mounted

• No Of Poles
• Three Pole

• Number of Module
• 1

• Operating Temperature
• -10C to +55C

• Product Type
• Phase Changeover in SS Enclosure

• Protection Level
• IP54

• Rated Voltage
• 415V AC

• Response Time
• Instantaneous (Mechanical Operation)

• Size
• Standard: 300mm x 200mm x 150mm

• Stoke
• Manual / Lever Operated

• Temperature Range
• -10C to +55C

• Weight
• 5 kg (approx.)

• Automation Grade
• Manual

• Circuit Type
• Single & Double Break

• Color
• Black/Grey with Markings

• Contact Resistance
• 20 m

• Current Rating
• 10A, 16A, 20A, 32A

• Finish Type
• Matte

• Insulation Resistance
• 100 M at 500V DC

• Material
• Flame Retardant Polycarbonate, Copper Contacts

• Max. Current
• 32A

• Max. Voltage
• 440V AC

• Mechanical Life
• >100,000 Operations

• Mounting Type
• Panel Mounting

• No Of Poles
• 1 to 4 Poles (as per model)

• Number of Module
• Available in 1, 2, 3 Module Sizes

• Operating Temperature
• -10C to +60C

• Product Type
• Multi Step Switch With OFF

• Protection Level
• IP54

• Rated Voltage
• 415V AC

• Response Time
• Instantaneous Switching

• Size
• Standard DIN Mount

• Stoke
• Positive Step Action

• Temperature Range
• -10C to +60C

• Weight
• Approx. 180g

• Automation Grade
• Manual

• Circuit Type
• Single phase / Three phase circuit selector

• Color
• Black/White with printed markings

• Contact Resistance
• <20 m max.

• Current Rating
• 10A

• Finish Type
• Matt finish front panel

• Insulation Resistance
• >100M at 500V DC

• Material
• Flame Retardant Polycarbonate housing, Silver alloy contacts

• Max. Current
• 10A

• Max. Voltage
• 660V AC

• Mechanical Life
• >100,000 operations

• Mounting Type
• Panel Mounting (screw type)

• No Of Poles
• 3 Position (L1-L2-L3)

• Number of Module
• Single

• Operating Temperature
• -25C to +55C

• Product Type

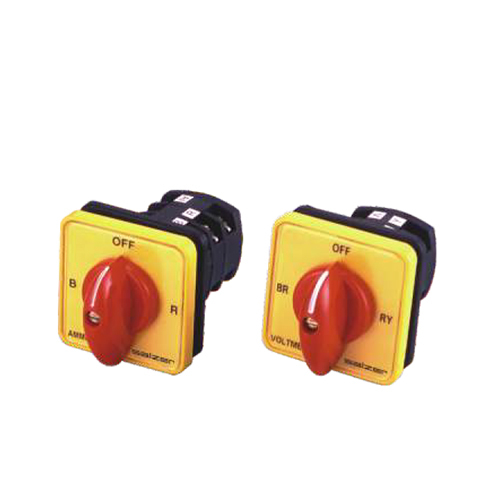

• Ammeter Selector Switch (ASS)

• Protection Level
• IP40 at front

• Rated Voltage
• 660V AC

• Response Time
• Instantaneous

• Size
• Standard 60mm x 60mm front plate

• Stoke
• 452 per position

• Temperature Range
• -25C to +55C

• Weight
• Approx. 110g

• Automation Grade
• Manual

• Circuit Type
• Single/Double Break

• Color
• Grey & Black

• Contact Resistance
• 50 m

• Current Rating
• 16A

• Finish Type
• Matte

• Insulation Resistance
• 100 M at 500V DC

• Material
• Polycarbonate Body, Copper Contacts

• Max. Current
• 16A

• Max. Voltage
• 690V AC

• Mechanical Life
• 500,000 operations

• Mounting Type
• Panel Mount

• No Of Poles
• 2 Pole

• Number of Module
• 1 Module

• Operating Temperature
• -20C to +55C

• Product Type
• Breaker Control Switch

• Protection Level
• IP52

• Rated Voltage
• 440V AC

• Response Time
• <20 ms

• Size
• 70mm x 50mm x 90mm

• Stoke
• 2 Positions (On-Off)

• Temperature Range
• -20C to +55C

• Weight
• 185 grams

• Automation Grade
• Manual

• Circuit Type
• Single Break / Double Break

• Color
• Grey / Yellow

• Contact Resistance
• 50 m

• Current Rating
• 16A / 20A

• Finish Type
• Matte

• Insulation Resistance
• 100 M (500V DC)

• Material
• Polycarbonate / ABS Enclosure

• Max. Current
• 16 A

• Max. Voltage
• 415 V AC

• Mechanical Life
• >100,000 operations

• Mounting Type
• Surface Mount

• No Of Poles
• 1/2/3 Poles (Options)

• Number of Module
• 1

• Operating Temperature
• -10C to +55C

• Product Type
• Switches In Enclosure

• Protection Level
• IP65

• Rated Voltage
• 230 V / 415 V AC

• Response Time
• <20 ms

• Size
• 130 x 80 x 65 mm (LxWxH)

• Stoke
• Short Stroke Plunger Type

• Temperature Range
• -10C to +55C

• Weight
• 350 g

• Automation Grade
• Manual

• Circuit Type
• AC

• Color
• White / Ivory / Custom Colors

• Contact Resistance
• 5 m

• Current Rating
• 6A/10A/16A

• Finish Type
• Matte/Glossy

• Insulation Resistance
• 100 M at 500 V DC

• Material
• High-Grade Polycarbonate (PC) / ABS Plastic

• Max. Current
• 16A

• Max. Voltage
• 250V AC

• Mechanical Life
• >10,000 cycles

• Mounting Type
• Wall Mounted

• No Of Poles
• Single/Double/Triple as per configuration

• Number of Module
• 1-4 Modules, customizable

• Operating Temperature
• -10C to +60C

• Product Type

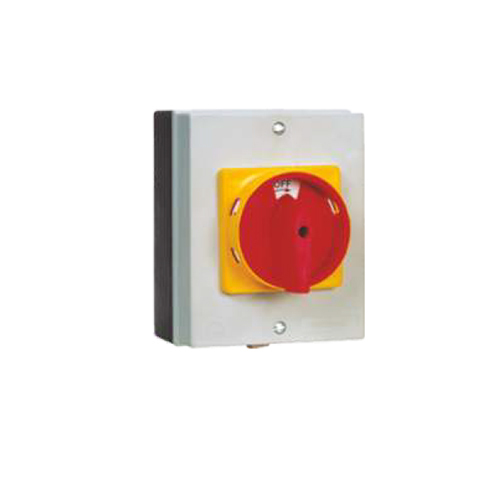

• Wall Type Mounting Box

• Protection Level
• IP20

• Rated Voltage
• 230V

• Size
• 86mm x 86mm x 50mm (Standard) or as per customization

• Temperature Range
• -20C to +70C

• Weight
• Approx. 110g

• Automation Grade
• Manual

• Circuit Type
• Single Break

• Color
• Black & Red

• Contact Resistance
• 5 m

• Current Rating
• 32A

• Finish Type
• Matte

• Insulation Resistance
• 1000 M at 500V DC

• Material
• Flame Retardant Thermoplastic

• Max. Current
• 32A

• Max. Voltage
• 1000 V DC

• Mechanical Life
• Over 10,000 cycles

• Mounting Type
• Panel Mount

• No Of Poles
• 2

• Number of Module
• 1

• Operating Temperature
• -25C to +70C

• Product Type

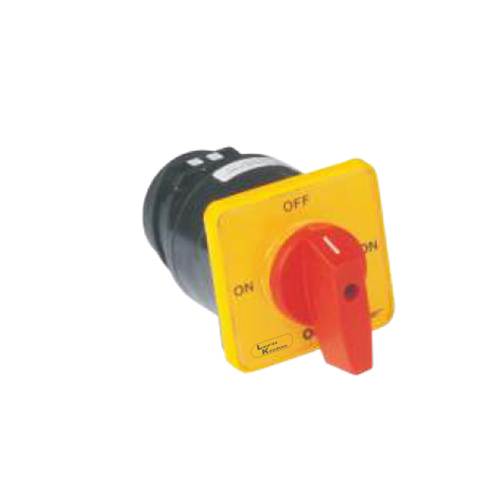

• DC Switch

• Protection Level
• IP20

• Rated Voltage
• 1000 V DC

• Response Time
• 20ms

• Size
• Standard (as per module)

• Stoke
• Push Button

• Temperature Range
• -25C to +70C

• Weight
• Approx. 110g

• Automation Grade
• Manual

• Circuit Type
• 3 Pole Double Throw

• Color
• Grey / Black

• Contact Resistance
• 50 m

• Current Rating
• 32A / 63A / 100A (as per model)

• Finish Type
• Matte

• Insulation Resistance
• >1000 Mega Ohms

• Material
• High-grade Polycarbonate / Copper Contacts

• Max. Current
• 63A

• Max. Voltage
• 415 V AC

• Mechanical Life
• > 50,000 operations

• Mounting Type
• Panel Mounted

• No Of Poles
• 3

• Number of Module
• 3

• Operating Temperature
• -10C to +60C

• Product Type

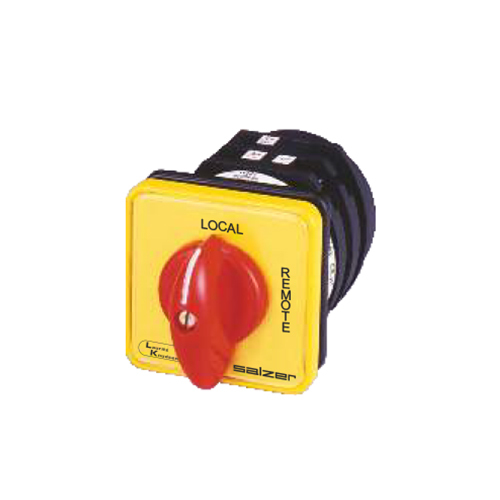

• Changeover Switch

• Protection Level
• IP20

• Rated Voltage
• 415 VAC

• Response Time
• Instantaneous

• Size
• Standard Panel Mount

• Stoke
• Precise Snap Action

• Temperature Range
• -10C to +60C

• Weight
• 540g

• Automation Grade
• Manual

• Circuit Type
• Double Break

• Color
• White/Grey

• Contact Resistance
• 50 m

• Current Rating
• 40A, 63A, 100A (as per model)

• Finish Type
• Glossy Finish

• Insulation Resistance
• 100 M at 500 V DC

• Material
• High Grade Polycarbonate and Copper

• Max. Current
• 63A

• Max. Voltage
• 415 V AC

• Mechanical Life
• Over 10,000 Operations

• Mounting Type
• Panel or Surface Mount

• No Of Poles
• 4 Poles

• Number of Module
• 4

• Operating Temperature
• -5C to +55C

• Product Type

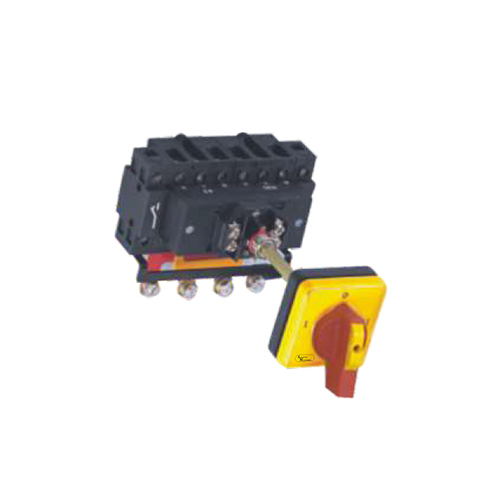

• 4 Pole EB - GEN Changeover Switch

• Protection Level
• IP20

• Rated Voltage
• 415 V

• Response Time
• Less than 20 ms

• Size
• Standard Modular (as per manufacturer)

• Stoke
• Robust Toggle/Rotary Handle

• Temperature Range
• -10C to 60C

• Weight
• Approx. 0.9 kg
